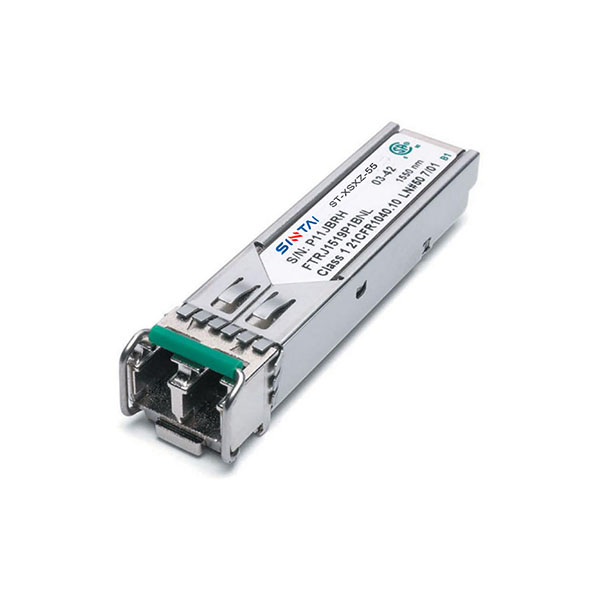

Designed for Ethernet, Fiber Channel, SDH, SONET, or CPRI links over duplex single-mode fibers, the Sintai CWDM SFP optical transceivers use 1270nm to 1610nm CWDM wavelengths with 20nm spacing and support transmission distance up to 120km.
PDF Download
Contact Us
Adopt SFP hot-swappable encapsulation with LC interface.
Support the rate of 1.25 or 2.67Gb/s with downward compatibility.
Support specification of CWDM.
Suitable for networks such as Ethernet/ FC/ SDH/ SONET/ CPRI.
Single-mode optical fiber supports a transmission distance of up to 120km in the CWDM system.
Built-in DDM (digital diagnostic monitoring function).
Working temperature: 0°C ~ +70°C.
Comply with RoHS standards.
The 1.25G and 2.5G SFP optical communication module launched by Sintai Communication Co., Ltd contains a wide range of products to support a variety of application scenes, including dual fiber bidirectional, single fiber bidirectional, CWDM, DWDM transmission.
The module conforms to the MSA protocol, and it has the characteristics of low power consumption, small size, multi-rate and good compatibility with different network applications, such as Ethernet/ SDH/ SONET/ CPRI/ FC, with the longest transmission distance of 120 km. The transceiver conforms to the RoHS standard and supports the digital diagnostic function.
The CWDM optical transceiver is used in the CWDM system which adopts the coarse wavelength division multiplexing technology to achieve long-distance and huge capacity transmission.
Model | Description | Transmission distance | Working wavelength | Transmitting power | Receiving sensitivity | Overload power |
(km) | (nm) | (dBm) | (dBm) | (dBm) | ||
ST-SCGZ-CXX | SFP, CWDM, 1.25G | 80 | CWDM (1271~1611) | 0~5 | ≤-24 | -1 |
ST-SCGU-CXX | SFP, CWDM, 1.25G | 120 | CWDM (1271~1611) | 0~5 | ≤-31 | -9 |
ST-SCSE-CXX | SFP, CWDM, 2.5G | 40 | CWDM (1271~1611) | -2~3 | ≤-18 | 0 |
ST-SCSZ-CXX | SFP, CWDM, 2.5G | 80 | CWDM (1271~1611) | 0~5 | ≤-28 | -9 |
