20x10G→2x100G Muxponder

20x10G→2x100G Muxponder

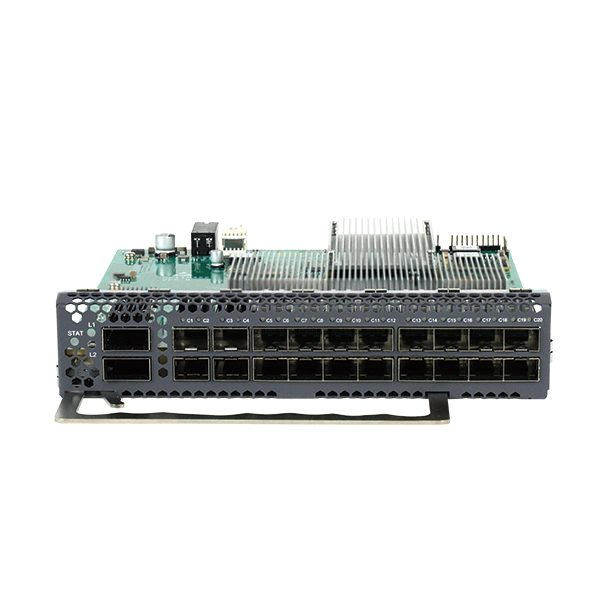

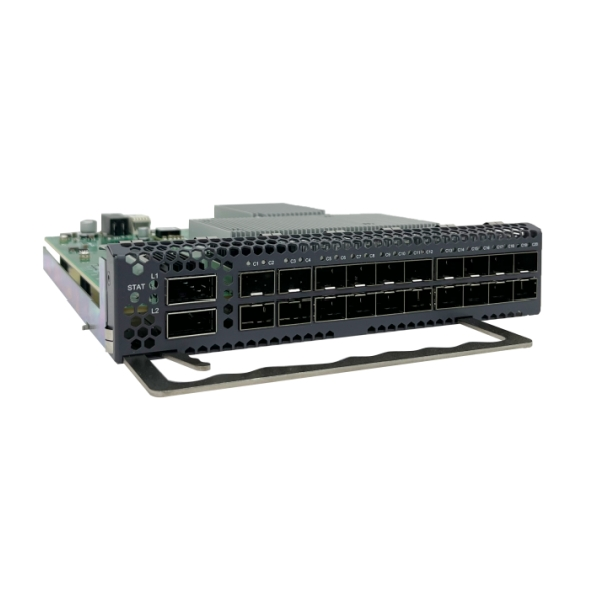

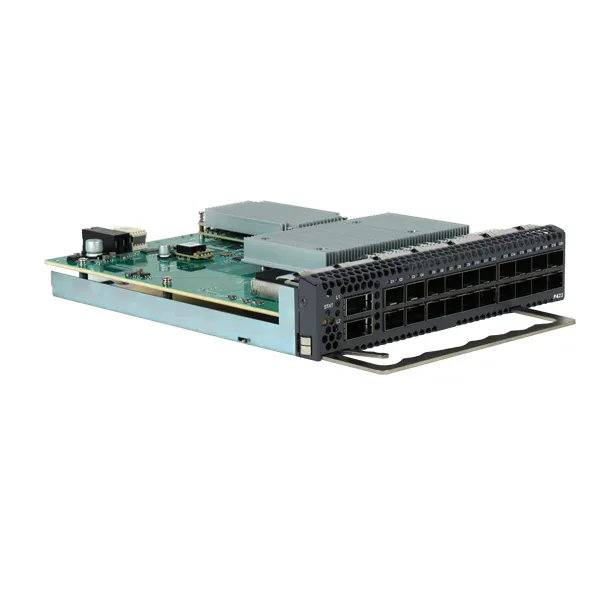

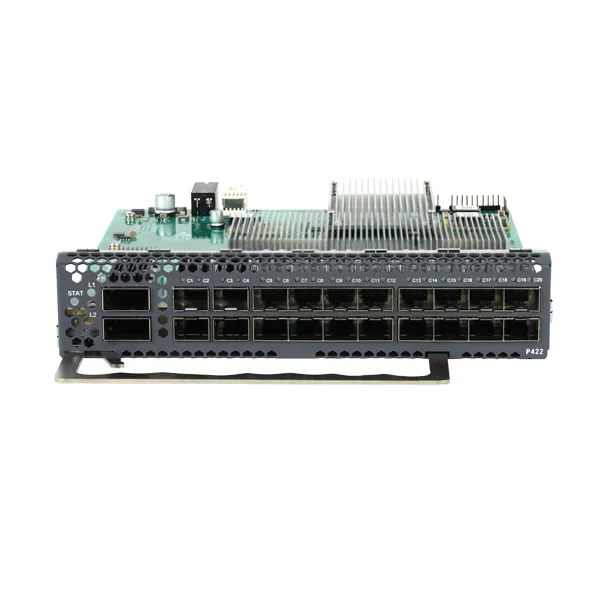

20x10G into 2x100G P422 Muxponder
  • 422
  • 422 2
  • 422
  • 422 2

The 100G Muxponder service card (P422) launched by Sintai Communication supports mapping the 20x10G optical signal received by the client side into 2 independent OTU4 signals or 10x10G optical signals into 1x OTU4 signal (line-side port 1+1 protection). The line side supports QSFP28 gray optical module or QSFP28/QSFP-DD DCO coherent module to achieve transmission requirements for different distances and diverse networks.


20x10G→2x100G Muxponder PDF Download Contact Us

Products
Blog

Function Structure

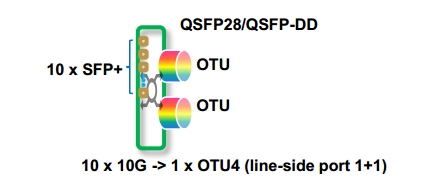

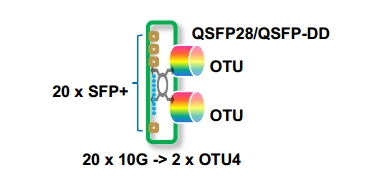

 Function_Structure_01.png Function_Structure_02.png


Product Specification


100G Muxponder（P422）

Function

  • Support 20x10G service signal signals mapping to 2 xOTU4 signals

  • Support 10x10G service signal signals mapping to 1 xOTU4 signal (with line-side port 1+1 protection)

Slot number

2 slots

Line side

  • 2 QSFP28 / QSFP-DD ports: adopts 100G QSFP28 / QSFP-DD DCO module, hot-pluggable

  • Support wavelength adjustable, range covers 191.35~196.1THz (DCO module)

Client side

Support 20 SFP+ modules, hot-pluggable

OTN function

  • Frame format and overhead handling using ITU-T G709 recommendations

  • ODUk (k=2, 2e, 4) layer: support PM and other functions

  • OTUk (k=2, 2e, 4) layer: support SM functions

Support service types

10GE, STM-64, 10GE_WAN, FC800, FC1600, OTU2, OTU2e

Loop back

Support line side and client side loopback

LLDP

10GE service support

ALS

Client side support when accessing non-OTN services

Protection function

Support line-side port 1+1 protection (10*10G on client side)

Performance monitoring and alarm monitoring

  • Supports OTN performance monitoring and alarm monitoring.

  • Support optical module temperature, current, optical power monitoring, etc.

  • Support Ethernet RMON monitoring

  • Support Telemetry
