8x100G→1x800G（OSFP）

8x100G→1x800G（OSFP）

  • 8x100G→1x800G（OSFP）

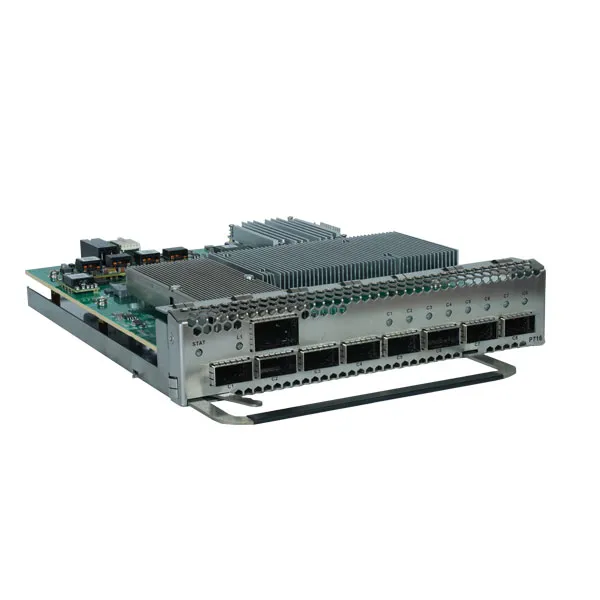

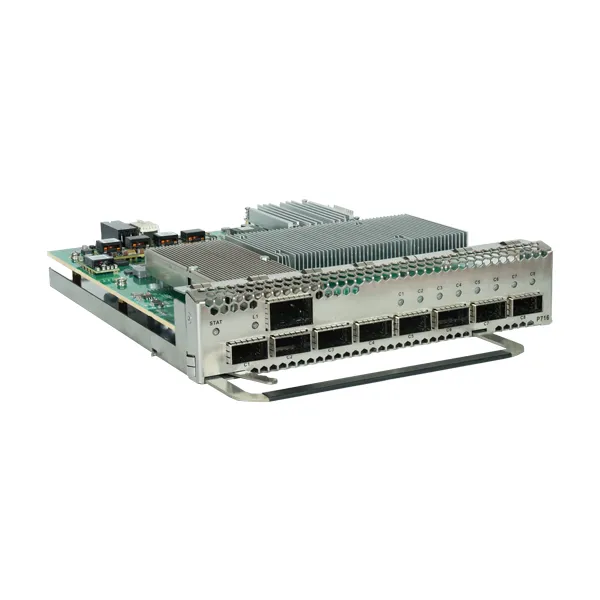

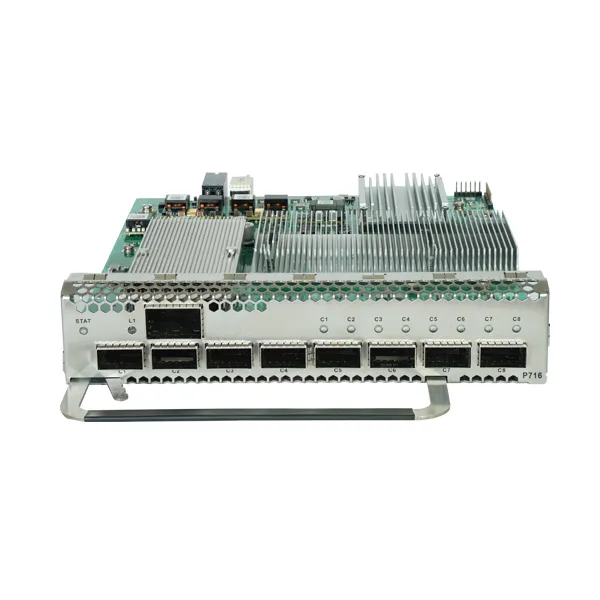

The 800G Muxponder service board (P716) launched by Sintai Communication carries multiple 100GbE and 400GbE services through one 800G wavelength and supports line rates from 400Gbit/s to 800Gbit/s. The line-side uses standard 800G OSFP pluggable coherent optical modules to provide a large-capacity, high-performance, cost-effective optical transmission solution.


8x100G→1x800G（OSFP） PDF Download Contact Us

Products
Blog

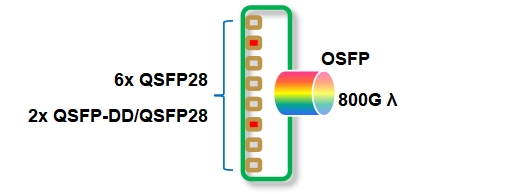

Function Structure



Application Case

  • Suitable for metropolitan area network and long-distance network transmission up to 450km

  • Suitable for large-capacity DCI network transmission in enterprises, campuses, cloud computing, etc.

  • 800G links for existing OTN /DWDM infrastructure


Product Specification

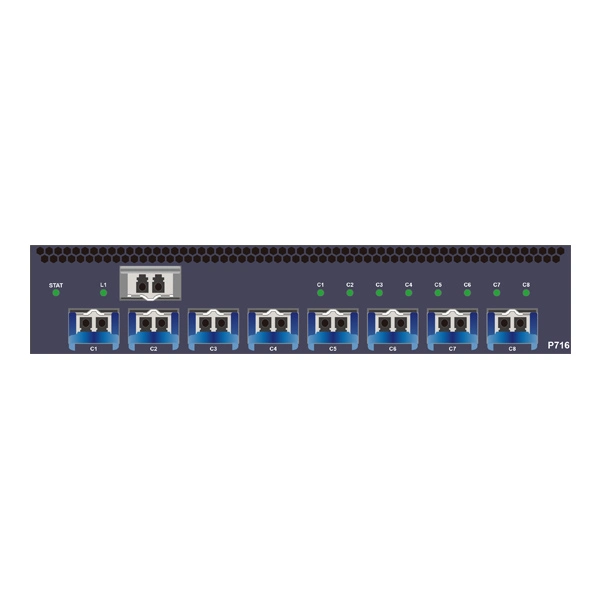

800G Muxponder (P716)
Occupied slot2 slots
Line-side

  • 1 OSFP optical port: 800G OSFP DCO module, pluggable

  • Support adjustable wavelength, range covering 191.25 ~ 196.1THz

  • Support adjustable light-emitting power, the range depends on the optical module

  • Support 400Gbit/s to 800Gbit/s programmable

Client-side

  • 2 QSFP-DD/QSFP28 compatible optical ports

  • 6 QSFP28 optical ports are pluggable

Supported service types400GbE, 100GbE
LoopbackSupport inner loop and outer loop on line-side and client-side
LLDPReceive mode only
ALSClient-side support
Alarm delay insertionSupport Local Fault alarm delay insertion function and delay time setting
Alarm and performance monitoring

  • Support line-side and client-side performance monitoring and alarm monitoring

  • Support Ethernet RMON monitoring

  • Support monitoring of optical module temperature, current, optical power, etc.

  • Support Telemetry

Typical power consumption＜120W
