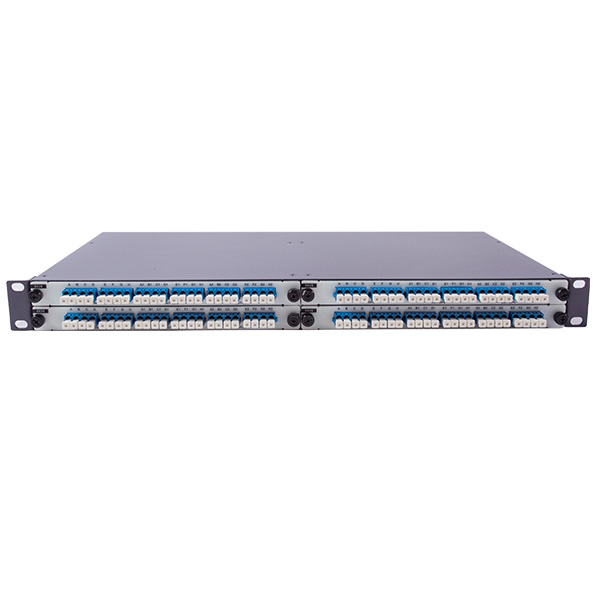

The 1U plug-in CWDM products introduced by Sintai company are modular in design. Each CWDM card supports up to 18-wave CWDM multiplex/demultiplex. The CWDM card can be flexibly configured according to network requirements, which greatly saves customers' fiber resources.

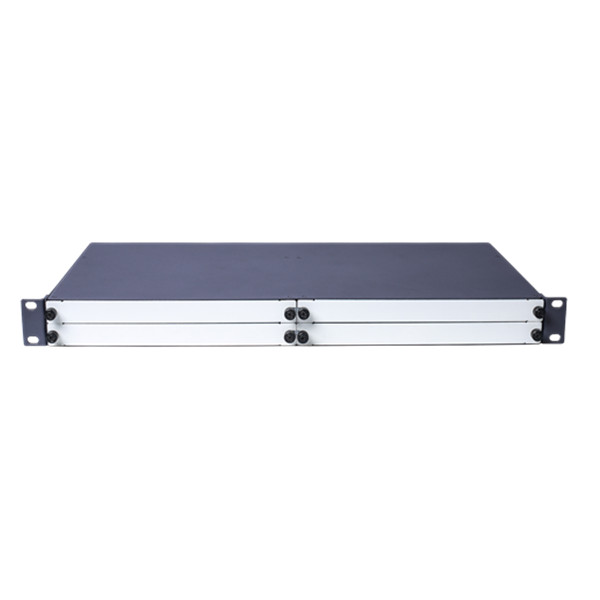

The 1U chassis can provide 4 slots to support all types of CWDM cards. It is suitable for CWDM centralized deployment and is widely used in metropolitan area networks.
PDF Download
Contact Us
Low insertion loss
High channel isolation
High stability and reliability
Lightpath without glue process
2~18 channels are optional
Parameter | Unit | MUX/DEMUX | |||
Channel Number | CH | 4 | 8 | 16 | 18 |
Operating Wavelength | nm | 1260~1620 | |||
Center Wavelength@λc | nm | ITU Grid | |||
Channel Spacing | nm | 20 | |||
Channel Insertion Loss | dB | ≤1.8 | ≤2.5 | ≤3.5 | ≤4.0 |
Channel band Bandwidth | nm | ≥λc±6.5 | |||
Channel Ripple | dB | ≤0.5 | |||
Adjacent Channel Isolation | dB | ≥30 | |||
Non-Adjacent Channel Isolation | dB | ≥45 | |||
Return Loss | dB | ≥50 | |||
Directivity | dB | ≥55 | |||
PDL | dB | ≤0.2 | |||
PMD | ps | ≤0.2 | |||
Power Handling | mW | ≤500 | |||
Operating Temperature | °C | 0~+70 | |||
Storage Temperature | °C | -40 ~+85 | |||
Fiber Type | - | Corning SMF-28e Ultra | |||
Package Size | mm | Standard 1U 19”，44(H)x442(W)x220(D) | |||
Fiber Adapter Type | - | SC or LC | |||
