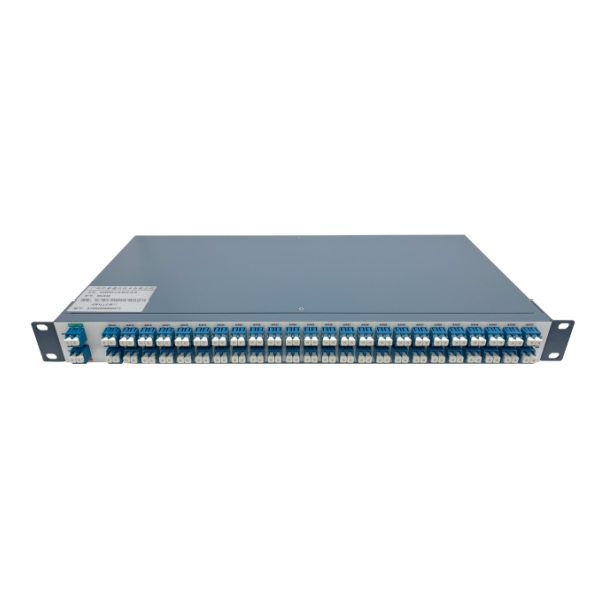

The 48-channel passive MuxDemux rack (MUX48) launched by Sintai Communication is mainly used in DWDM wavelength division system to complete the multiplexing or demultiplexing function of 48 optical wavelengths in the C-band range. It can multiplex different optical wavelengths to one optical fiber or separate multiple optical channels multiplexed in the same optical fiber by wavelength. Based on the waveguide grating technology on silicon substrate, it adopts a unique heat free packaging design, which can achieve accurate channel coupling, low insertion loss, high channel isolation and high stability. It is suitable for 48 wave high-capacity DWDM system.


48CH Integrated MuxDemux PDF Download Contact Us

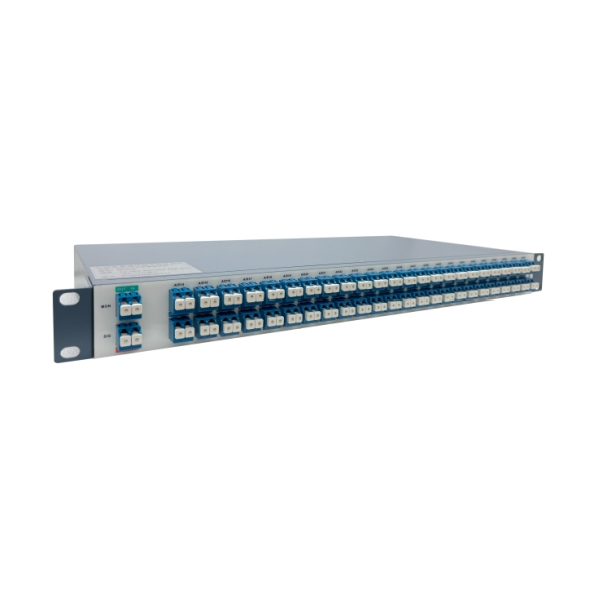

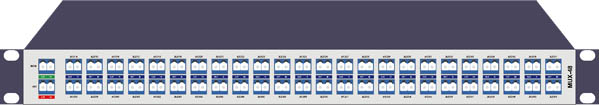

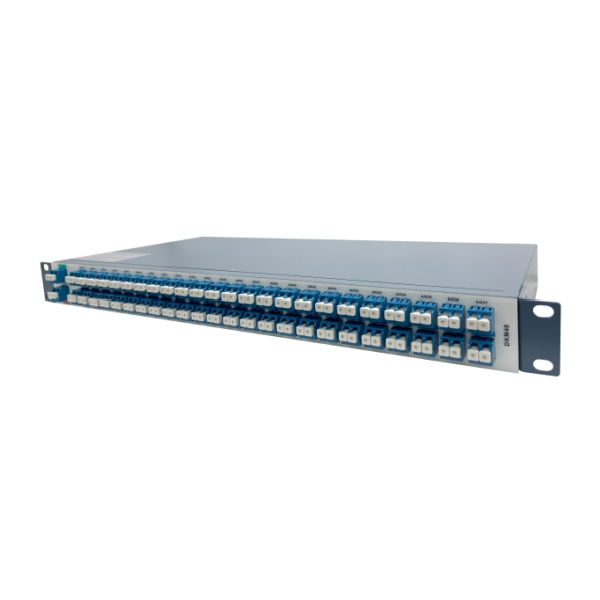

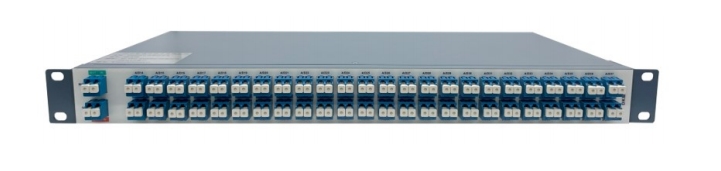

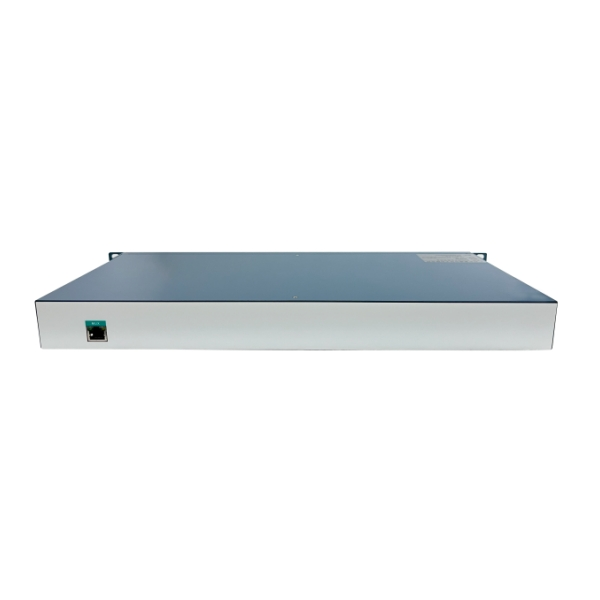

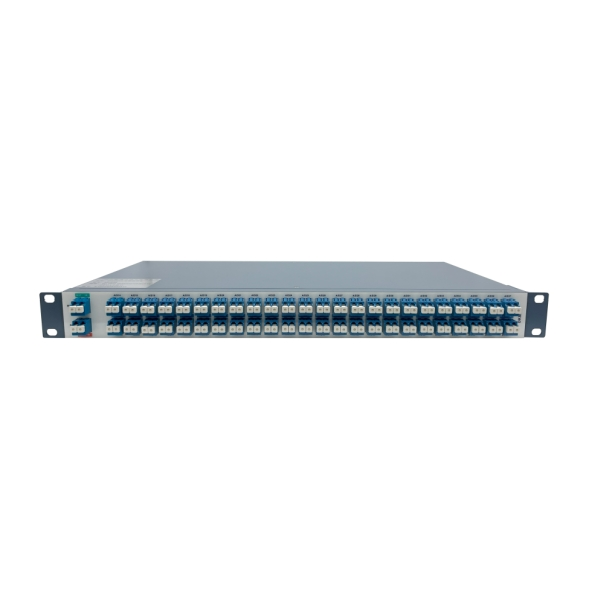

Product View

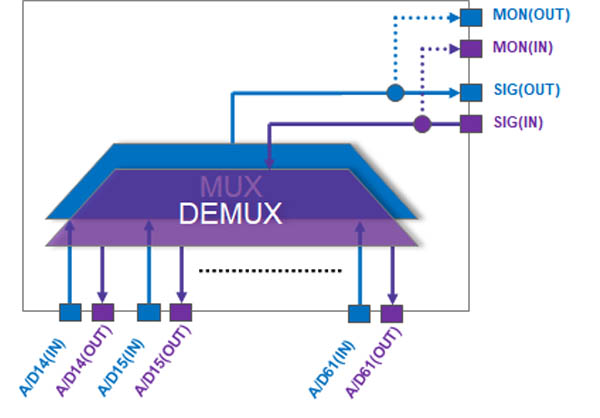

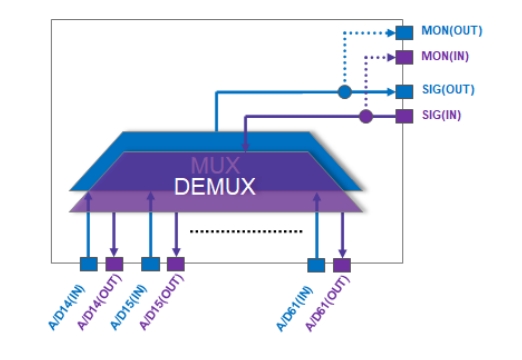

Function Structure


Application Case

  • Suitable for multiplexing and demultiplexing 48 channels of DWDM optical signals in C-band



Product Specification

48CH Passive MuxDemux Rack (MUX48)

Function

Support multiplexing and demultiplexing of 48 DWDM optical signals in C-band

Size (HxWxD)

1U: 44 mm (Height)×442 mm (Width)×220 mm (Depth)

Spectral type

Flat-top type

ITU passband frequency

±12.5GHz

Channel spacing

0.8nm (100GHz)

Channel number

48

Wavelength accuracy

≤0.04nm

Channel insertion loss

≤5.5 dB

Insertion loss uniformity

≤1.5dB

1dB bandwidth

≥0.38nm

3dB bandwidth

≥0.56nm

20dB bandwidth

≤1.2nm

Adjacent channels isolation

≥25dB

Non-adjacent channels isolation

≥30dB

Total crosstalk

≥22dB

Return loss

≥40dB

Polarization dependent loss

≤0.5dB

Polarization mode dispersion

≤0.5ps

Dispersion

±20ps

Working temperature

-5 ~ +65°C

Storage temperature

-40 ~ +85°C

MON port splitting ratio

21dB (splitting ratio 1%)

Management

Provide RJ-45 management interface to connect with the rear interface card of OTNS8600-DCI8 equipment, read the SN / model / PN and other information of the equipment through the network management system, and report the on / off status at the same time, with dumb resource management ability
