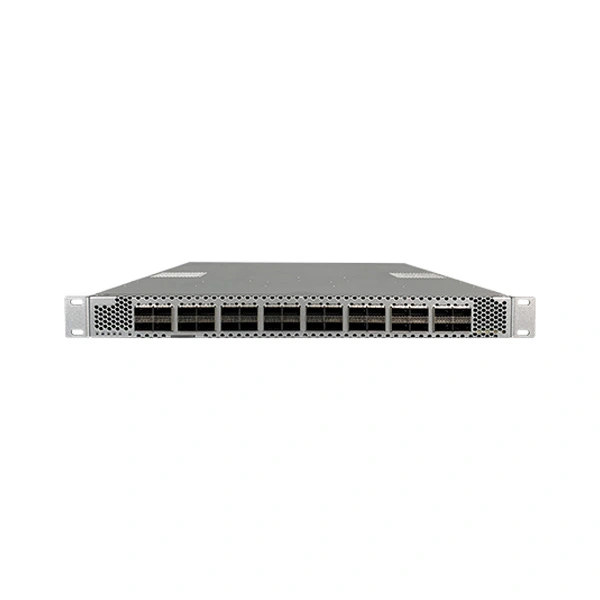

The ST-S6500-32C switch is a new generation of high-performance, high-density data center Ethernet switch products developed by Sintai for cloud data centers and cloud computing networks. Supports 32*100G slots, 1+1 hot-swappable redundant power, 4+1 hot-swappable redundant fans with intelligent adjustable speed, spine-leaf network architecture design requirements.
PDF Download
Contact Us
Build high-performance data center network
Supports high-density 100G/40G to meet the requirements for high-performance data centers, the 100G ports are backward compatible with 40G.
Data center Overlay network
Supports VxLAN. It can meet the requirements of data center Overlay network construction, and solve the problem that the number of VLANS in the traditional data center network is insufficient and the scale is difficult to expand.
Support EVPN* protocol, and the automatic discovery and authentication of VTEPs reduces the flooding of the VxLAN data plane and prevents the dependency of the VxLAN on the multicast of the underlying deployment. This simplifies the VxLAN deployment, improves the construction efficiency of the large layer-2 network, and better meets the deployment requirements of the large Layer-2 network in the data center.
M-LAG architecture
Supports the M-LAG(Multi-chassis Link Aggregation Group)cross-device link aggregation technology. Two physical devices are virtualized into one device at the forwarding layer to achieve cross-device link aggregation. The control layer is independent from each other, which improves board-level reliability to device-level reliability.
Hardware-based traffic visualization Combined with the hardware capability provided by the chip itself, it can realize the end-to-end traffic visualization in the complex multi-path, multi-node network. Through protocols such as RSPAN and sFlow, the real-time network resource information of the switch can be sent to the operation and maintenance platform of the data center, and the operation and maintenance platform can analyze these real-time data, and realize the functions of network quality backtracking, fault troubleshooting, risk early warning, and architecture optimization.
Carrier-grade reliability protection
Multiple reliability protection at device level and link level. Adopt over current protection, over voltage protection and over heat protection technology. Built-in redundant power modules and fan modules. All power modules and fan modules can be hot-swappable without affecting the normal running of devices. The AC or DC power module can be flexibly configured according to the actual environment requirements.
In addition, the machine supports fault detection and alarm of power supplies and fans. The fan speed can be automatically adjusted according to temperature changes to better adapt to the data center environment and achieve energy saving and emission reduction.
Rich link reliability technologies, such as ERPS fast ring network protection mechanism, MRPP fast link switching mechanism. Supports the BFD fast forwarding detection mechanism. When multiple services and heavy traffic are carried on the network, the convergence time of the network is not affected, ensuring the normal development of services.
IPv4/IPv6 dual stack
The hardware supports IPv4/IPv6 dual-stack multi-layer line-speed switching, differentiates and processes IPv4 and IPv6 packets, and supports multiple Tunnel technologies (such as manual tunnel configuration, automatic tunnel, and ISATAP tunnel). It can provide flexible IPv6 inter-network communication solutions based on IPv6 network requirements and network status.
Rich IPv4 routing protocols, including static routes, RIP, OSPF, IS-IS, and BGP4. A variety of IPv6 routing protocols, including static routes, RIPng, OSPFv3, and BGP4+, can be flexibly selected to build a network whether upgrading an existing network to an IPv6 network or creating an IPv6 network.
Comprehensive security control strategy
Various internal mechanisms can effectively prevent and control virus transmission and hacker attacks, such as preventing DoS attacks and checking the validity of ARP packets on ports.
Multiple hardware ACL policies are secure and reliable. Support inbound and outbound ACLs, and VLAN-based ACLs are delivered. Control illegal users to use the network and ensure legitimate users to use the network properly, such as multi-group binding, port security, time ACL, and bandwidth limiting based on data flow, to meet the requirements of enterprise networks and campus networks to strengthen control over visitors and limit communication between unauthorized users.
Excellent management ability
Supports diversified management interfaces, such as Console port, MGMT port, and USB port, SNMPv1/v2/v3, and universal network management platform. Supports the CLI command line, Web NMS, and TELNET to facilitate device management, and supports encryption modes such as SSH2.0 and SSL to make management more secure. Supports file upload and download management in TFTP mode.
Flexible duct orientation options
In order to better match the air duct design of the data center, the switch provides users with a more flexible air duct scheme. When the front and rear air ducts are implemented, users can also select different fan modules to realize different wind directions (power side air or port side air).
Model | ST-S6500-32C |
Interface | 32*100GE QSFP28 Slots |
Management port | 1*MGMT Port, 1*Console Port, 1*USB Port, Meet the USB 2.0 standard |
Transmission mode | Support store-forward mode and cut-through mode |
Packet forward speed | 2800Mpps |
Switching capacity | 6.4T |
Dimension(L*W*H) | 440mm(W) * 470mm(D) * 43mm(H) (1U height) |
Full weight | Approx.11kg |
Fan | Five hot-swappable fan modules for front and rear ventilation |
Power supply | Dual module power supply |
AC input | Rated voltage range: 100~240V Maximum voltage range: 90~264V Frequency: 50~60Hz Rated input current: 5~10A |
DC input | Input voltage range: 180~310V Input current range: 5A |
Power consumption | Static (Dual AC): 173W; Maximum (Dual AC): 512W |
Operating temperature | 0°C ~ 40 °C |
Storage temperature | -40 °C ~ +70 °C |
Operating humidity | 10% ~ 90% non-condensing |
Storage humidity | 5% ~ 90% non-condensing |
VLAN | GVRP | |
PVLAN | ||
Voice VLAN | ||
VLAN Translation | ||
Q-in-Q | ||
Subnet-based VLANs | ||
Protocol-based VLANs | ||
MAC-based VLAN | ||
MAC address | Dynamic, static and black hole MAC address table entries | |
MAC address auto learning and aging | ||
MAC address learning restrictions | ||
Source MAC address filtering | ||
Multicast | IGMP Snooping v1/v2/v3 | |
MLD Snooping v1/v2 | ||
PIM-DM, PIM-SM, PIM-SSM | ||
Multicast VLAN | ||
Multicast Traffic Suppression | ||
Qos function | Port-based rate limiting for incoming and outgoing messages | |
Stream-based rate limiting | ||
Class Of Service | Based on port, source-destination MAC, source-destination IP | |
802.1p | ||
CoS | ||
DSCP | ||
IP priority | ||
Source destination L4 Port | ||
Prioritisation Algorithm | WRR | |
SP | ||
DSCP & CoS mapping | ||
Congestion avoidance mechanisms such as WRED, tail drop, etc. | ||
Safety | Port Security | |
Port Isolation | ||
IEEE802.1x AAA | ||
ACLs | L2/L3/L4 | |
IPv4/v6 ACL | ||
User hierarchy | ||
IP source protection (IP MAC port binding, IP -MAC-port-VALN binding) | ||
Dynamic ARP protection | ||
Illegal packet detection | ||
Broadcast storm suppression | ||
RADIUS/TACACS+ | ||
RADIUS authentication (RFC2138) | ||
DDoS Attack Prevention | ||
HTTPs and SSL | ||
SSH v1.5/v2.0 | ||
DHCP Listening | ||
DHCP Relay | ||
L3 protocol (IPv4) | Default Routing | |
Static routes | ||
RIP V1/V2 | ||
OSPF V2 | ||
ISIS | ||
BGP4 | ||
ECMP | ||
VRRP | ||
IPv6 foundation | IPv6 ND | |
IPv6 Web/SSL | ||
IPv6 NTP/SNTP | ||
IPv6 Telnet/SSH | ||
IPv6 Ping/Traceroute | ||
IPv6 FTP/TFTP | ||
IPv6 RADIUS/TACACS+ | ||
IPv6 SNMP | ||
IPv6 features | Static Routing | |
Equivalent Routing | ||
OSPFv3 | ||
RIPng | ||
BGP4+ | ||
Manual tunnelling | ||
Automatic Tunneling | ||
IPv4 over IPv6 tunnelling | ||
ISATAP tunnelling | ||
Data center features | VxLAN Bridging | |
VxLAN Routing | ||
EVPN VxLAN | ||
M-LAG | ||
RoCE v2, PFC、ECN | ||
MPLS | MPLS | |
VPLS | ||
VPWS | ||
LDP | ||
Visualisation | sFlow Sampling | |
Reliability | STP, RSTP, MSTP | |
BPDU Guard | ||
STP Root Guard | ||
Loop Protection, Loop Detection | ||
BFD Detection | ||
Ethernet OAM | ||
ULDP | ||
Power supply 1+1 redundancy | ||
Fan redundancy design | ||
Hot-swappable power supply and fan modules | ||
Management and maintenance | SNMP (v1, v2c, v3) | |
RMON (1,2,3 & 9) | ||
Firmware Upgrade | ||
Configuration Export/Import | ||
DHCP | Client | |
Option 82 | ||
Option 66 | ||
Option 67 | ||
Event/Error Logs | System Log | |
Management Access Control | Serial Port | |
Out-of-Band Management Port | ||
SNMP | ||
HTTP/HTTPS | ||
Telnet | ||
Port Mirror | ||
LLDP (IEEE802.1AB), LLDP-MED | ||
UDLD | ||
DNS Client | ||
Traceroute | ||
Ping | ||
DDMI | ||
NTP/ SNTP (RFC2030) | ||
Power, fan, and temperature alarms | ||

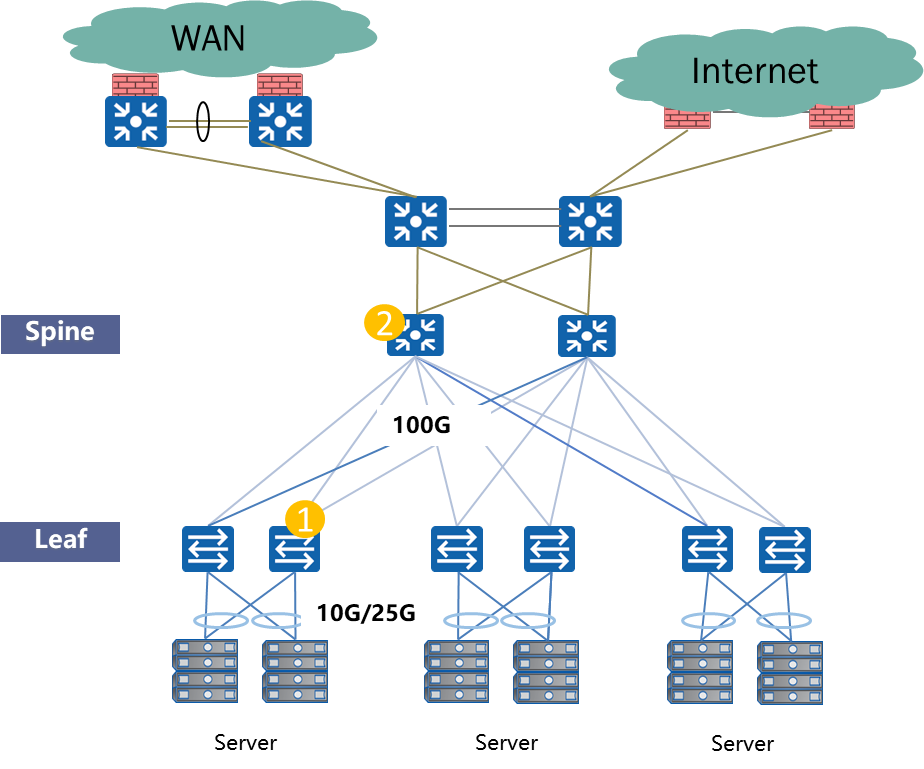

In the typical networking of data centers, the ST-S6500-48V8C switch is used as TOR switches to provide high-density 25G/10G server access. the ST-S6500-32C switch is used as spine node. In the spine-leaf network architecture, the spine nodes are interconnected with leaf nodes through 100G.
Application of S6500 series switches in data centers
