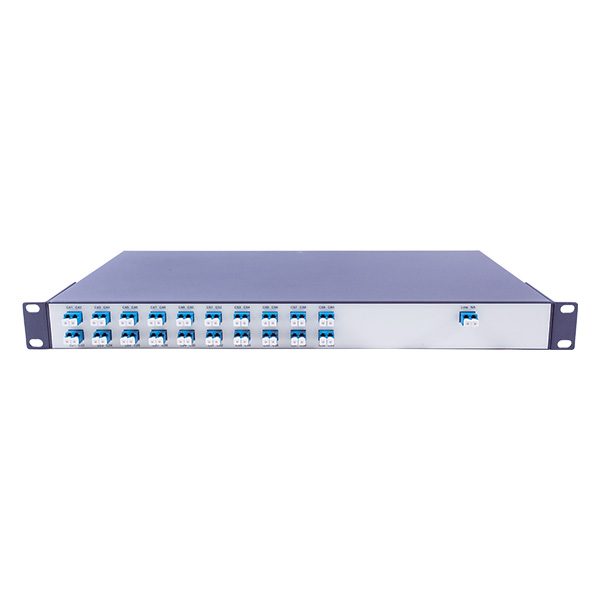

The 1U rackmount 40 or 48 athermal AWG product from Sintai can be installed in a standard 19-inch cabinet. It can support up to 1*48 channel athermal AWG module or 1*40 channel athermal AWG modules.
Two devices can realize dual-fiber transmission of 40 or 48 independent channels' services. When configuring with our OTU/OLP/EDFA/DCF equipment, it can greatly extend transmission distance and increase carrying capacity, and the equipment also provides Monitor optical monitoring port for real-time channel quality monitoring.
PDF Download
Contact Us
Low insertion loss
High channel isolation
High stability and reliability
Low polarization dependent loss
Multi-channel number
Item | Unit | Parameter | |
Gauss | Flat top | ||
ITU | GHz | ±12.5 | |
Channel Spacing | nm | 0.8nm(100GHz) | |
Channel Number | 40 or 48 | ||
Wavelength accuracy | nm | ≤0.05 | |
Channel Insertion Loss | dB | ≤5.0 | ≤5.5 |
-1dB Bandwidth | nm | ≤0.2 | ≤0.34 |
-3dB Bandwidth | nm | ≤0.4 | ≤0.51 |
Adjacent Channel Isolation | dB | ≥25 | |
Non-Adjacent Channel Isolation | dB | ≥30 | |
Total isolation | dB | ≥22 | ≥23 |
Channel Ripple | dB | ≤1.5 | |
Return Loss | dB | ≥45 | |
Directivity | dB | ≥50 | |
PDL | dB | ≤0.5 | |
PMD | ps | ≤0.5 | |
Power Handling | mW | ≤300 | |
Operating Temperature | °C | -10~+70 | |
Storage Temperature | °C | -40 ~+85 | |
Fiber Type | - | Corning SMF-28e Ultra | |
Package Size | mm | Standard 1U 19", 44(H)x442(W)x220(D) | |
