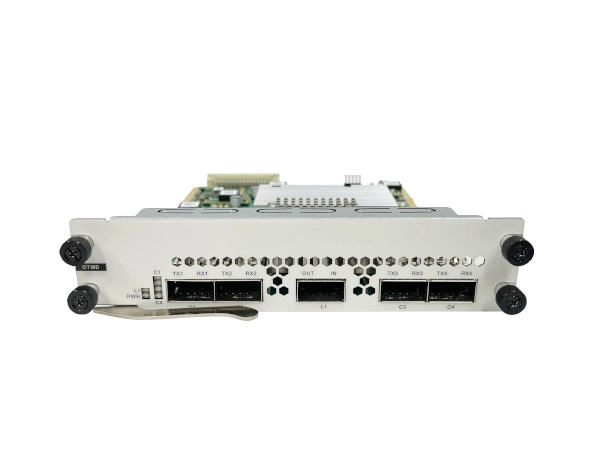

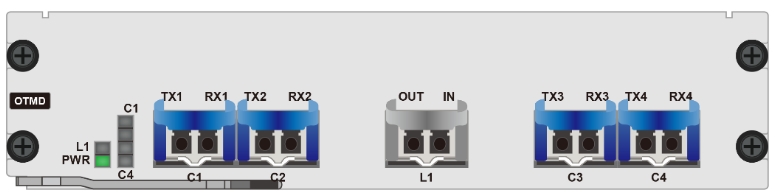

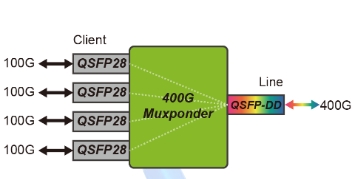

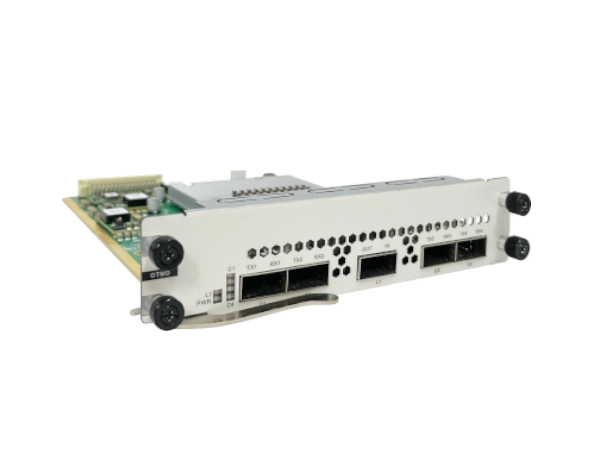

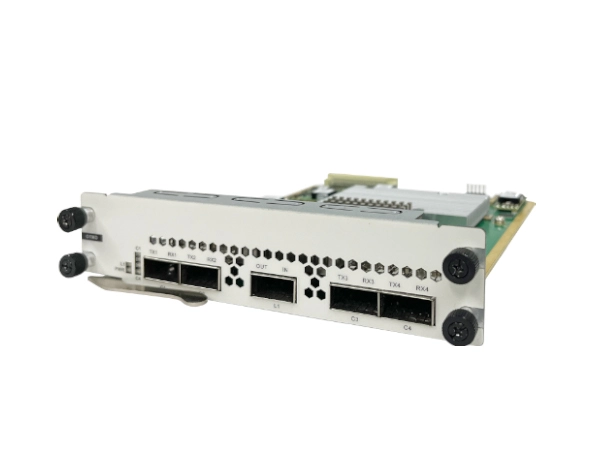

The 400G Muxponder service card (OTMD) launched by Sintai Communication supports 4x100G↔400G electrical layer multiplexing/demultiplexing and converts to one 400G rate WDM standard wavelength optical signal, so as to facilitate WDM multiplexing of different wavelengths by the combiner unit, and at the same time realizes the inverse process of the above process. The line side adopts pluggable QSFP-DD DCO, which realizes ultra-long distance transmission based on coherent detection and other advanced technologies, and supports 100G/200G/400G rate configurability.
PDF Download
Contact Us
Parameter | Description |
Product model | OTMD |
Line side |
|
Client side | 4 QSFP28 optical ports pluggable |
Supported service types | 100GE, 100GE_RS-FEC |
Loopback | Support line-side and client-side loopbacks |
LLDP | 100GE, 100GE_RS-FEC service support |
ALS | Support automatic laser turn-off and turn-on based on optical signal inputs |
Alarm delayed insertion | Support Local Fault alarm delayed insertion and delay time setting |
Performance monitoring |
|
Number of slots occupied | Support the full range of OTNS8600 chassis, occupying 2 slots |
Maximum power consumption | 60W (with optical module) |
