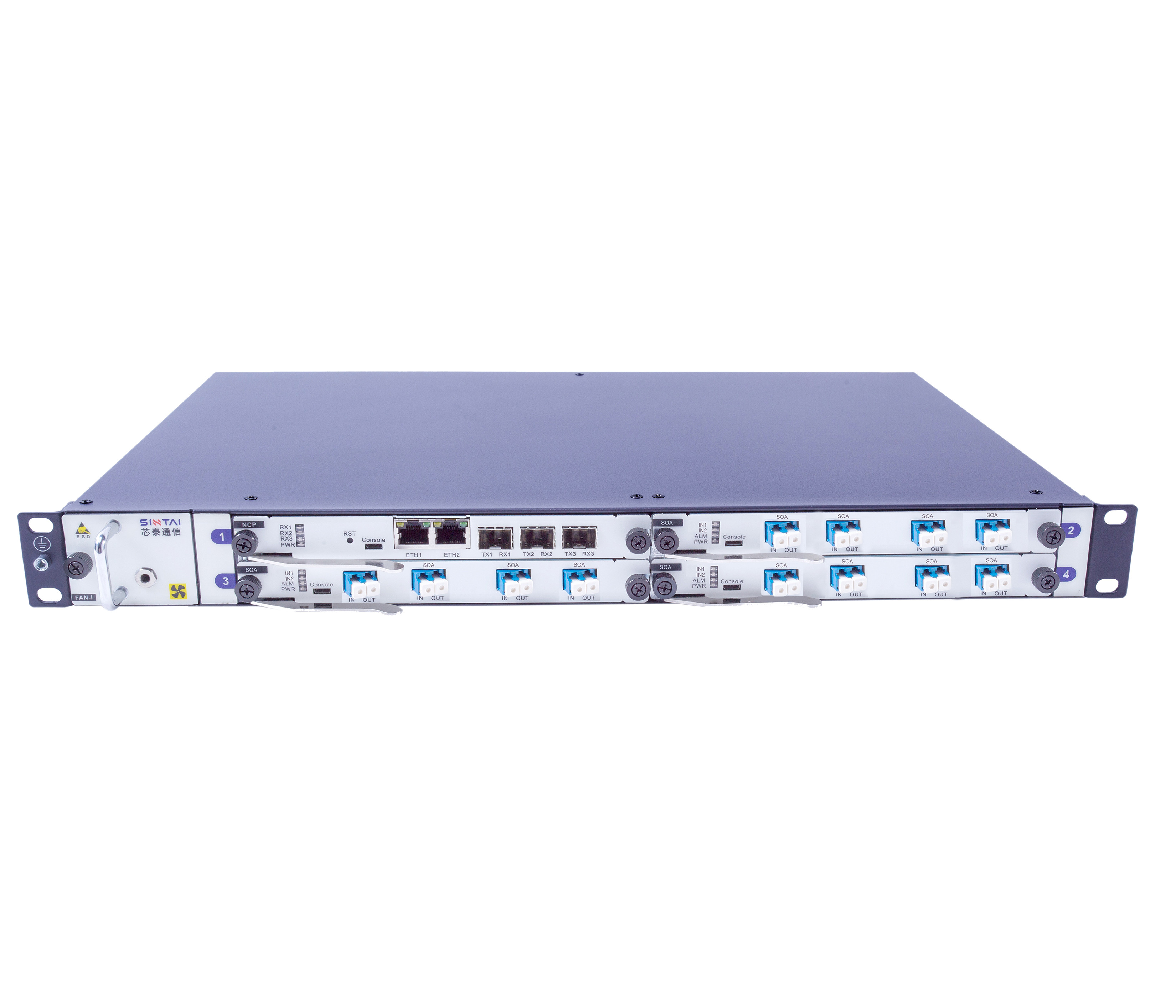

The SOA optical amplification subsystem launched by Guangzhou Sintai Co., Ltd is a special amplification platform for the low-power optical signal of 100G high-speed services in optical networks.

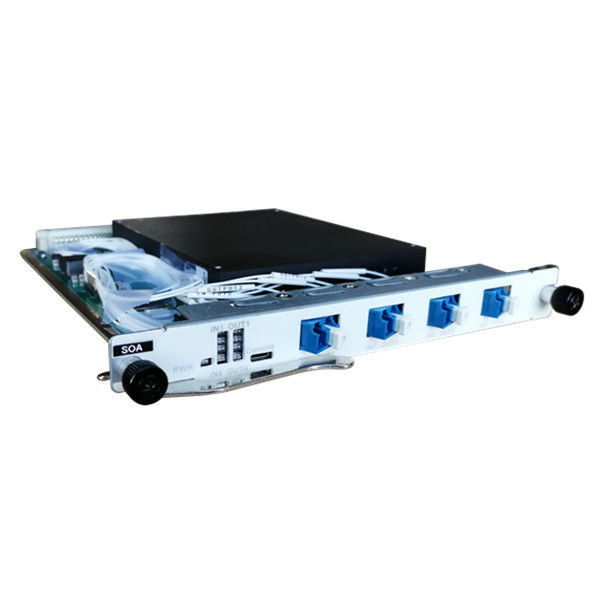

It adopts the plug-in card type and hot-plug design with the characteristics of high integration, low power consumption, and stable output power. This type of semiconductor amplifier is widely used in data link power amplification and extending transmission distance in various industries.
PDF Download
Contact Us
Wavelength range: 1280nm~1330nm
Working modes: automatic power control (APC)and automatic gain control (AGC)
Input power range: -17dBm~-4dBm
High output power: saturated output optical power can reach +12dBm
Double power protection: support AC power 220V, DC power -48V, and 1+1 power input protection
Green and easy-to-use: configuration-free installation, plug-and-play
Unified network management platform: Support multi-kinds of graphical interface network management, such as SNMP, Web
Item | Parameter | Remark |
Working wavelength range | 1280nm ~ 1330nm | |
Input power range (total power) | -17dBm ~ -4dBm | |
Output power range (total power) | 2dBm ~ 12dBm | |
Gain | ≥14dB | |
Gain flatness | ≤2dB | |
Noise figure | ≤7.5 dB | |
Polarization-dependent gain | ≤2dB | |
Working temperature range | -10℃~60℃ | |
Working humidity range | 5%~95% no condensation | |
Storage temperature | -40℃~85℃ | |
Equipment dimension | 1U: 44 mm (H)×442 mm (W)×280 mm (D) | |
Network management | Support multi-kinds of graphical interface network management, such as SNMP and Web | Optional |
System capacity | 16*100G optical signal amplification | 1U full load |
Optical interface | LC/UPC | |
Power supply | AC: 90 ~ 260V or DC: -36 ~ -72 V (1+1 power input backup) | |
Typical power consumption | Full configuration<160W | |
Heat dissipation | Fan cooling | |
MTBF | ＞100000 hours |
