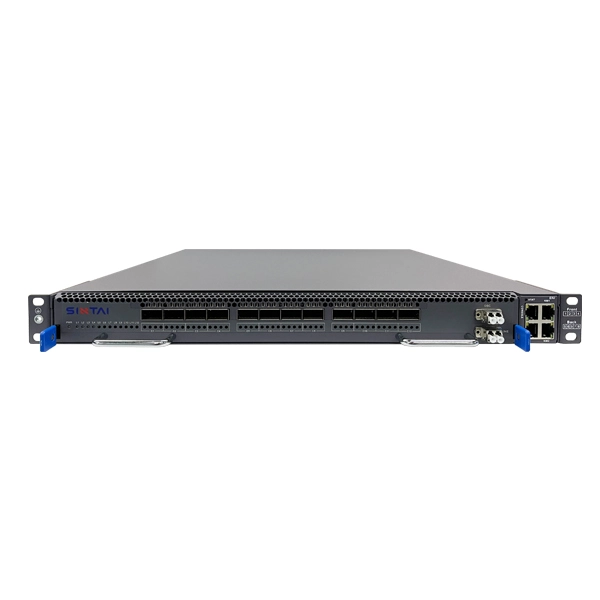

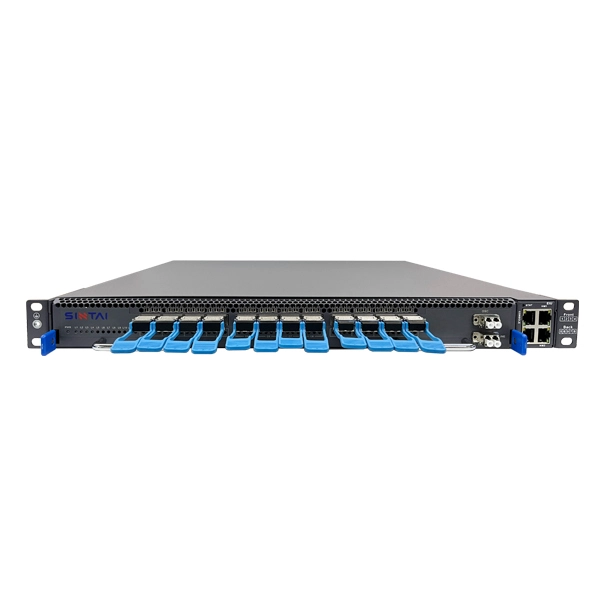

12X400G→4.8T System

400G Integrated DWDM System Feature

• 1U rack-mount modular design, all components are pluggable, including service card, main control card(SCU), power supply card, fan card, optical module, etc. The failure of the main control card(SCU) will not affect the business.

• One unit of the device provides 12*400G QSFP-DD client-side interfaces. Each 400G interface can support 4x100G through breakout mode.

• The capacity is customized on demand, with a minimum configuration of one 400G interface. Optical modules can be added to the redundant interfaces to achieve a maximum transmission capacity of 4.8T for a single device.

• It provides expansion interfaces and supports device stacking, which can effectively expand the transmission capacity to 19.2T per fiber.

• Supports 100GE and 400GE service access, service upgrades, and equipment replacement-free, protecting investment.

• Supports 0~120km transmission distance, and the link budget can reach 30dB (without line protection).

• Supports 1+1 line protection on the optical cable side (optional), automatically selects transmission routes, and improves network reliability.

• Supports in-band optical supervisory channel (OSC), remote device management can be achieved as long as the optical path is connected.

• There is no complicated optical-electrical cross-connection, services are transmitted transparently, and service ports are completely physically isolated, which improves network security.

• Supports Web and B/S network management and provides open SNMP interface.

• Supports line-side optical power monitoring, WDM-side bit error rate and OSNR monitoring, and client-side Ethernet performance monitoring.

• Front-to-back air outlet design, 1+1 fan unit configuration, hot-swappable.

• AC/DC power supply, dual server power supply configuration, hot-swappable, and 1+1 hot backup using Load Share mode.

400G Intergrated DWDM System Specification
