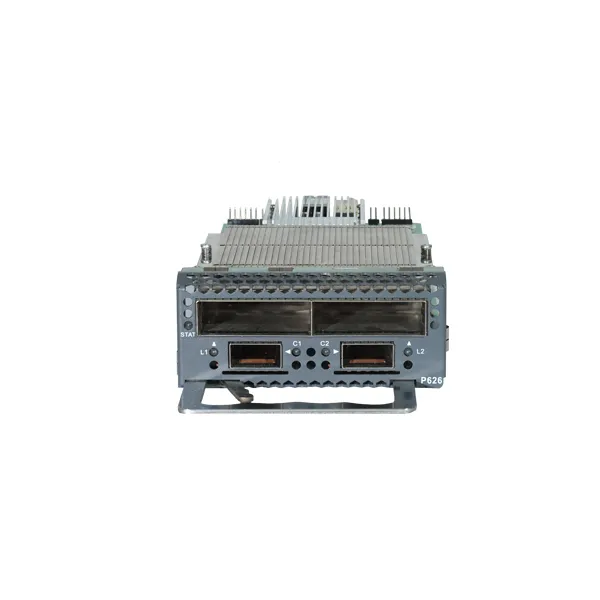

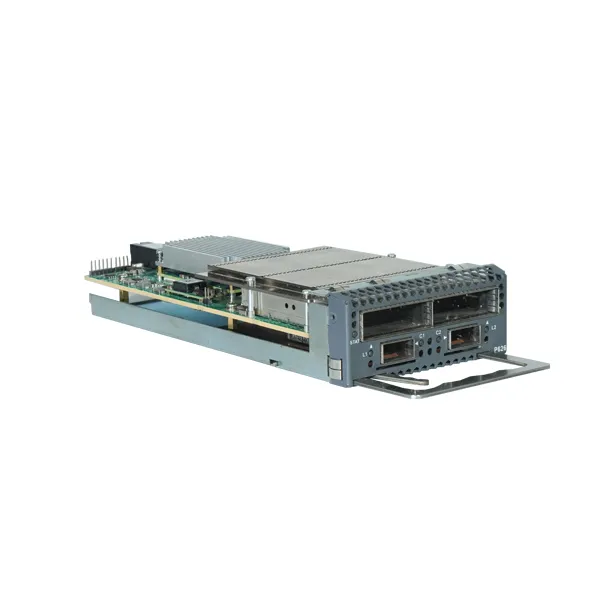

2x400G→2x400G Muxponder(CFP2)

Name: 2x400G→2x400G Muxponder(CFP2)
Brand: Sintai Communication Co.,LTD.

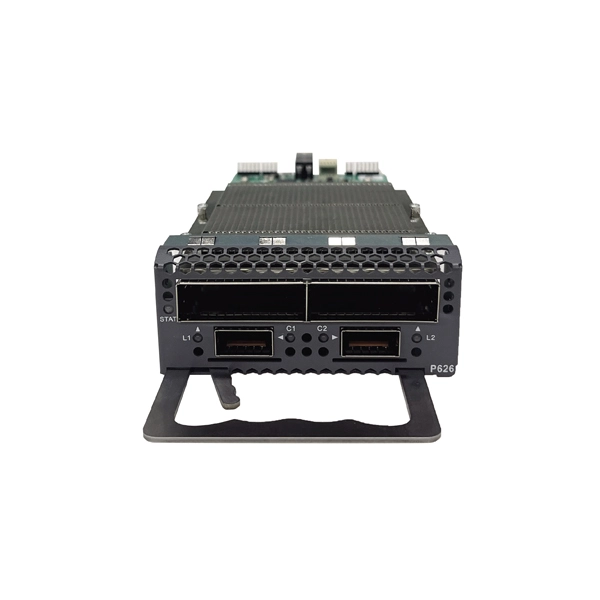

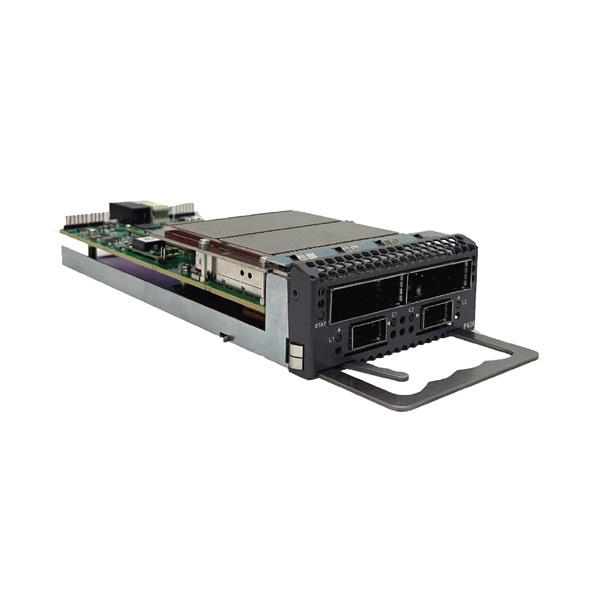

The 2*400G Muxponder service card (P626) launched by Sintai Communication supports mapping 2x400G signals received on the customer side into 2 OTUC4 signals and interconverting the OTUC4 signals with WDM wavelength optical signals compliant with ITU-T standards. The line side adopts pluggable CFP2 DCO to realize ultra-long distance transmission based on coherent detection and other advanced technologies.

PDF Download Contact Us

Products

Blog

Working Principle and Characteristics of EDFA Amplifiers
Oct 30, 2024
Transponder vs. Muxponder: What Are Their Differences in OTN Networks?
Oct 28, 2024

Function Structure

Application Case

Suitable for metro and long-haul network transmission up to 600km
Suitable for high-capacity DCI network transmission for enterprises, campuses, cloud computing, etc.
Suitable for 400G links in existing OTN/DWDM infrastructures

Product Specification

2*400G Muxponder (P626)
Function	Support 2x400GE/8x100GE(breakout) service signals mapping to 2 OTUC4 signal
Slot number	1
Line side	2 CFP2 optical ports: adopts 400G CFP2-DCO module, hot-pluggable Support wavelength adjustable, range covers 191.35~196.1 THz Support adjustable light-emitting power Support single fiber bidirectional transmission (optional)
Client side	Support 2 QSFP-DD modules, hot-pluggable
OTN function	Frame format and overhead handling using ITU-T G709 recommendations ODUk（k=4, C4）layer support PM and other functions OTUk（k=C4）layer support SM functions
Support services	400GE, 100GE(Breakout)
Time delay measurement	Support line-side online delay measurement based on ODU layer
Loopback	Support line side and client-side loopbacks
LLDP	Receive-only (rxonly) mode
ALS	Support
Alarm delay insertion	Support Local Fault alarm delay insertion and delay time setting
