The DCM dispersion compensator launched by Guangzhou Sintai Communication Co., Ltd. is a purely passive device. It can compensate for the dispersion slope of standard single-mode optical fiber (G.652) in the C-band.
And it is used to repair the optical signal distorted by dispersion and compensate the damaged signal in the optical transmission system, so as to improve the performance of the transmission system and achieve high-speed, large-capacity, long-distance communication. The dispersion range of the DCM can reach - 10 to - 2100ps/nm at 1550nm wavelength. And products with special requirements for central wavelength and dispersion can be also provided.
PDF Download
Contact Us
100% slope compensation of G.652 optical fiber in C-band
Low insertion loss
Low polarization mode dispersion
Wideband Dispersion Compensation for DWDM System
Packaging and interface types can be customized
Comply with Telcordia GR-2854-CORE standard
Conform to RoHS-6 (lead-free)
SDH high-speed optical transmission system
DWDM optical transmission system
G.652 Standard single-mode optical fiber long-distance and metropolitan area communication system
Item | Perimeter | |||||
Equivalent G.652 compensation length | 20Km | 40Km | 60Km | 80Km | 100Km | 120Km |
1545nm wavelength dispersion (ps/nm) | -340±20 | -670±30 | -1000±40 | -1340±50 | -1670±60 | -2040±60 |
1545nm relative dispersion slope (nm-1) | 0.004±20% | |||||
Insertion loss (dB) | ≤3.5 | ≤5.0 | ≤6.8 | ≤8.7 | ≤10.7 | ≤12.9 |
Polarization mode dispersion (ps) | ≤0.5 | ≤0.8 | ≤1.0 | ≤1.2 | ≤1.3 | ≤1.4 |
Polarization dependent loss (ps) | ≤0.1 | ≤0.1 | ≤0.1 | ≤0.1 | ≤0.1 | ≤0.1 |
Optical reflection (dB) | -27 | |||||
Maximum permissible input power (dBm) | +23 | |||||
Working temperature range | -5°C~70°C | |||||
Storage temperature range | -40°C~85°C | |||||
Environmental/Reliability Testing | Conform to Telcordia GR-2854 and GR1221standard | |||||
Interface type | LC/PC or to be customized | |||||

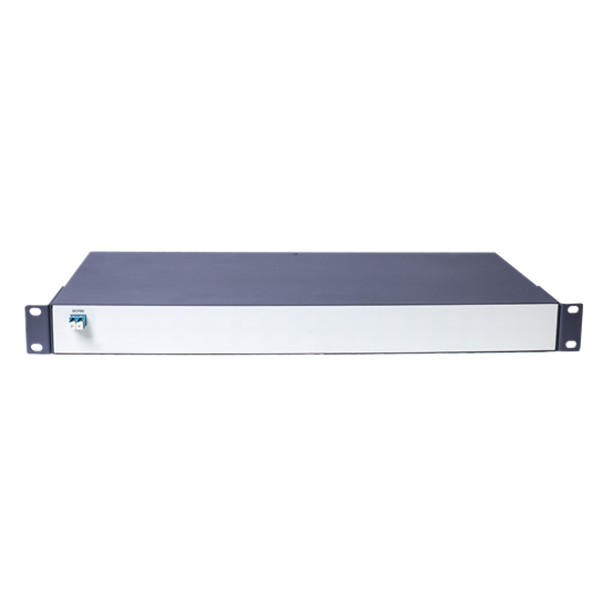

Packaging | Pluggable chassis: 1U, (D)220mm×(W)442mm×(H)44mm Rackmount: 1U, (D)220mm×(W)442mm×(H)44mm | |||||
