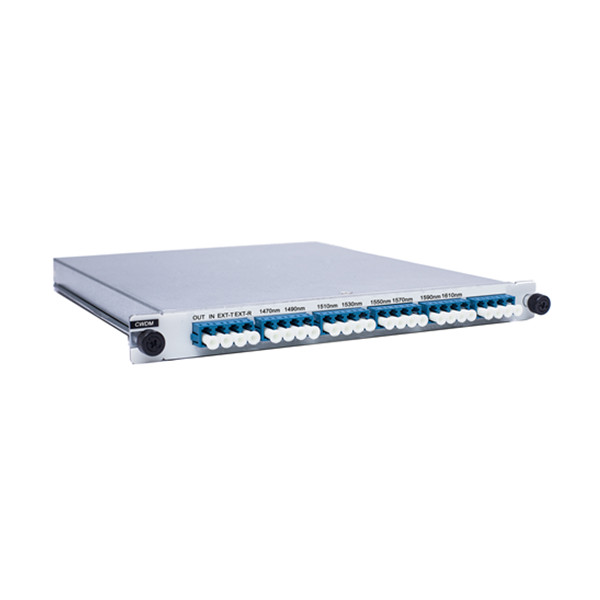

CWDM Coarse Wave Division Multiplexing (CWDM) Multiplexer/Demultiplexer (MUX/DEMUX) modules support ITU-T G.694.2 wavelengths between 1270nm to 1610nm in 20nm increments. CWDM/X modules are protocol and rate transparent allowing different services up to 10Gbps to be transported across the same fiber link.
PDF Download
Contact Us
Scalable to 8 or 16 channels using an optional Expansion Port or separate Band Splitter
Enables existing 1310nm networks to carry up to an additional 8 channels with optional 1310nm Pass Band Port
Enables existing 1550nm networks to carry up to an additional 4 channels with optional 1550 Pass Band/Expansion Port
Protocol and rate transparent for applications up to 10Gbps
Highly compact form factor with up to 120 ports in a 2U chassis
Seamless integration with other media converters and chassis for multi-service platforms
Compatible with LGX chassis using the LGX Adapter
A passive device that can also be installed in a powered chassis for managed applications
Management available with the addition of a management module to the chassis
Minimal and uniform optical loss facilitates easy network planning
Industry-standard LC UPC or APC connectors
Commercial (0 to 50°C) and wide (-40 to 60°C) temperature ranges
Three (3) Year Warranty and Free 24/7 Technical Support
Parameter | Unit | MUX/DEMUX |
Channel Number | CH | 4 |
Operating Wavelength | nm | 1260~1620 |
Center Wavelength@λc | nm | ITU Grid |
Channel Spacing | nm | 20 |
Channel Insertion Loss | dB | ≤1.8 |
Channel band Bandwidth | nm | ≥λc±6.5 |
Channel Ripple | dB | ≤0.5 |
Adjacent Channel Isolation | dB | ≥30 |
Non-Adjacent Channel Isolation | dB | ≥45 |
Return Loss | dB | ≥50 |
Directivity | dB | ≥55 |
PDL | dB | ≤0.2 |
PMD | ps | ≤0.2 |
Power Handling | mW | ≤500 |
Operating Temperature | °C | 0~+70 |
Storage Temperature | °C | -40 ~+85 |
Fiber Type | - | Corning SMF-28e Ultra |
Package Size | mm | 100x130x25 |
Fiber Adapter Type | - | SC or LC |
