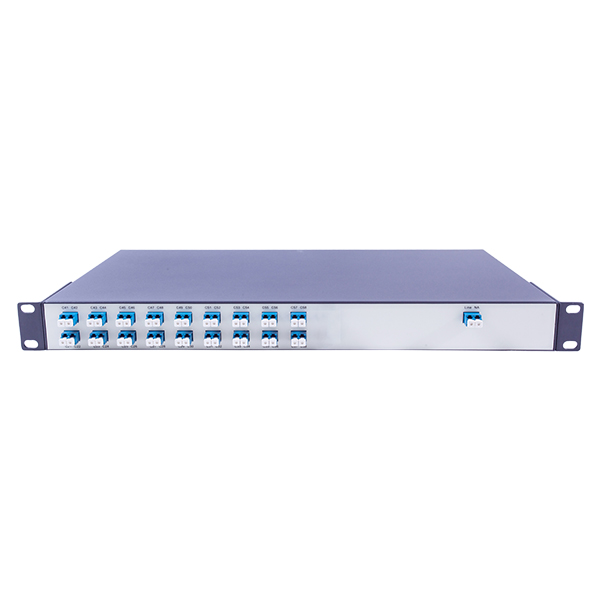

The 8-Channel DWDM MUX-DEMUX module provides multiplexing and demultiplexing for up to 8 DWDM wavelengths in a single-wide module. All wavelengths fall within the pass-band of a C band channel, allowing the module to be used in DWDM applications to increase the number of wavelength circuits.

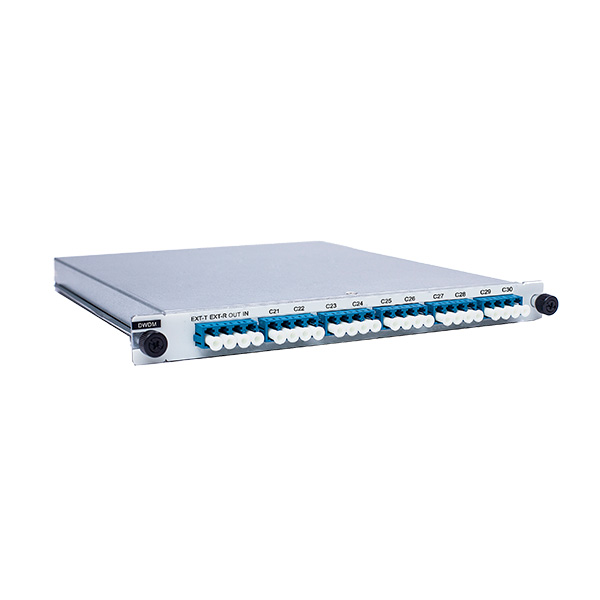

Integrated monitor ports allow for easy installation and troubleshooting, and integrated expansion ports allow additional DWDM wavelengths to be added in-service. The module is compatible with other DWDM equipment and can be used in extended temperature range applications.
PDF Download
Contact Us
1.Low Insertion Loss
2. High Reliability and Stability
3. Low PDL
4. Compact Design
5. Wide Operating Wavelength: 1270nm-1610nm (1261nm~1611nm)
6. Wide Operating Temperature: -20 to +70℃
Parameter | Unit | MUX/DEMUX |
Channel Number | CH | 8 |
Operating Wavelength | nm | 1525~1565 Optional |
Center Wavelength@λc | nm | C Band, ITU Grid |
Channel Spacing | nm | 0.8nm(100GHz) |
Channel Insertion Loss | dB | ≤2.5 |
Passband Bandwidth | nm | ITU±0.11 |
Channel Ripple | dB | ≤0.5 |
Adjacent Channel Isolation | dB | ≥30 |
Non-Adjacent Channel Isolation | dB | ≥35 |
Return Loss | dB | ≥50 |
Directivity | dB | ≥50 |
PDL | dB | ≤0.15 |
PMD | ps | ≤0.1 |
Power Handling | mW | ≤500 |
Operating Temperature | °C | -10~+70 |
Storage Temperature | °C | -40 ~+85 |
Fiber Type | - | Corning SMF-28e Ultra |
Package Size | mm | Standard 1U 19", 44(h)x442(w)x220(d) |
Fiber Adapter Type | - | SC or LC |
