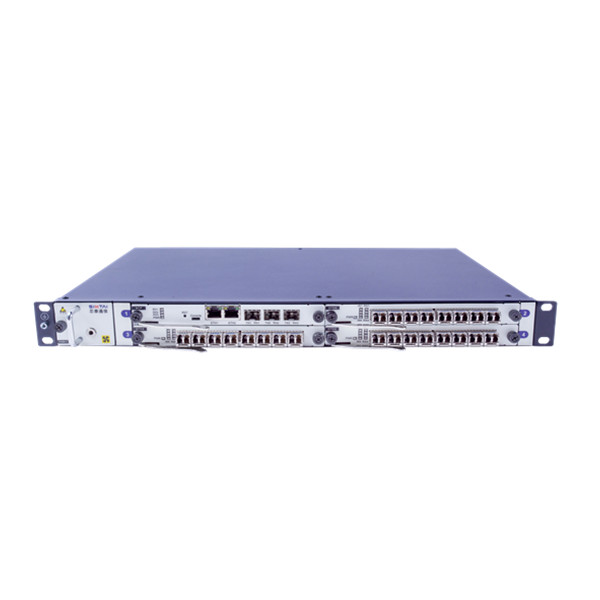

The OEO optical amplification subsystem launched by Guangzhou Sintai Co., Ltd adopts the clock and data recovery (CDR) chip design with the highest performance and flexibility in the industry.
It can perfectly realize the function of optical signal regeneration and amplification, signal cleaning, and shaping with features of highly compact structure, flexible configuration, and low power consumption.
The system supports the amplification of optical signals at any rate between 100M~100G with all modes and is widely applied in the field of operators, private networks, and information systems.
PDF Download
Contact Us
Support the optical amplification of services at any rate, such as SDH/SONET, POS, GE, 10GE, 40GE, 100GE, and so on.
Support optical signal conversion of single-mode and multi-mode, single and dual fiber, and wavelength conversion.
1U platform supports as most 32 services amplifying at a rate of 155M~10G or 16 services amplifying at a rate of 40G~100G.
Adopt modular design with flexible configuration of each OEO function card and excellent scalability.
Support multi-kinds of graphical interface network management, such as SNMP, Web.
Support ALS function to extend the laser lifespan and avoid damage to humans from laser leakage.
Support AC power 220V, DC power -48V, and 1+1 power input protection.
Free of configuration installation and support plug and play. All the optical interfaces are pluggable to reduce the spare parts cost.
Function | Description |
Dimension | 1U: 44 mm (H)×442 mm (W)×280 mm (D) |
Working wavelength range | Multi-mode 850nm, single-mode 1260nm~1650nm, CWDM/DWDM |
Supported service types | STM-1/4/6/16/64/256, FE/GE/10GE/40GE/100GE |
Service access capability | Support the OEO (optical-electrical-optical) amplification of at most 32 routes' services under any protocols within the rate of 155M~10G |
3R function | Support 3R function: re-amplifying), re-timing, re-shaping |
ALS function | Support laser automatic turn-off alarm function. The laser will automatically turn off the emission when it receives no light |
Network management | Support multi-kinds of graphical interface network management, such as SNMP, Web |
Optical interface | LC/UPC |
Working temperature range | -10℃~60℃ |
Working humidity range | 5%~95% no condensation |
Storage temperature | -40℃~85℃ |
Power supply | AC: 90 ~ 260V or DC: -36 ~ -72 V (support 1+1 power input backup) |
Typical power consumption | Full configuration<90W |
Heat dissipation | Fan cooling |
MTBF | ＞100000 hours |
