The OLP optical line protection subsystem launched by Guangzhou Sintai Co., Ltd is based on the advanced development of optical switch technology. It's an automatic monitoring and protection system independent of the communication transmission system and completely based on the physical link of the optical cable.
The system can automatically switch the signal to the optical fiber of the protection path when performance deterioration or blockage of the working path is detected, utilizing optical line protection. In this way, an optical communication network with high reliability, safety, flexibility, and strong disaster resistance is established.
PDF Download
Contact Us
Applicable to all kinds of optical communication system
Support line protection of dual fiber and single fiber transmission network
Support multiple working modes of automatic or manual switching
Supporting real-time monitoring of main and backup routes
Fast response: switching time<20ms
Support automatic non-return and automatic return functions, automatic return time can be set to adapt to a variety of application scenarios
Support panel button operation. The system can be operated by button on-site without a management card
Support power-off and power-on retention functions

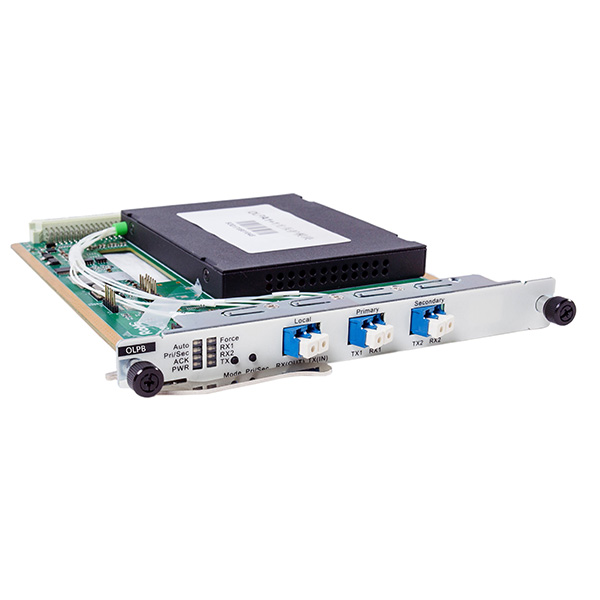

OLP cards and network management cards are independent of each other and have no influence on each other
Support multi-kinds of graphical interface network management, such as SNMP, Web
Support AC power 220V, DC power -48V, and 1+1 power input protection

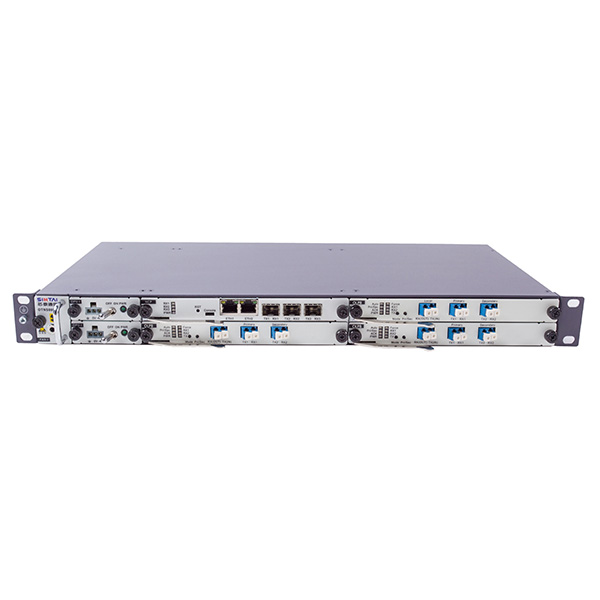

1U pluggable rack mount, flexible capacity configuration
Item | Parameter | |||
Working wavelength range | 1260nm ~ 1650nm | |||
OLP type | OLPA (dual fiber 1+1 protection) | OLPB (dual fiber 1:1 protection) | OLPA-BiDi (single fiber 1+1 protection) | |
Switching time | ＜20ms | ＜40ms | ＜20ms | |
Introduction loss | Main path | ＜5dB | ＜3dB | ＜5.5dB |
Backup path | ＜5dB | ＜3dB | ＜5.5dB | |
Monitoring power range | -50 dBm ~+25dBm | |||
Working temperature range | -10℃~60℃ | |||
Working humidity range | 5%~95% no condensation | |||
Storage temperature | -40℃~85℃ | |||
Equipment dimension | 1U: 44 mm (H)×442 mm (W)×280 mm (D) | |||
Network management | Support multi-kinds of graphical interface network management, such as SNMP, Web | |||
Optical interface | LC/UPC | |||
Power supply | AC: 90 ~ 260V or DC: -36 ~ -72 V (support 1+1 power input backup) | |||
Typical power consumption | Full configuration<30W | |||
Heat dissipation | Fan cooling | |||
MTBF | ＞100000 hours | |||
